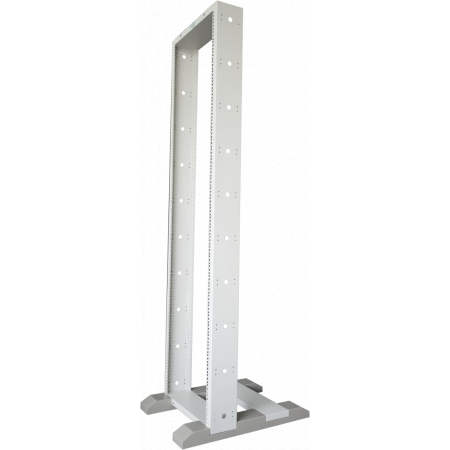

VIETRACK 2 Post Open Rack

A simple, economical IT equipment organization solution suitable for use in cable systems and network equipment that need high mobility. The open design makes it easy for users to manipulate the system and helps the devices dissipate heat optimally. The compact design and high-load wheel system make it easy for users to move and install.

Category:

Description

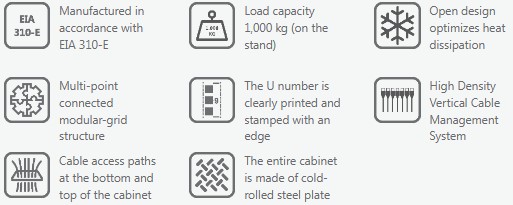

Basic characteristics

• The cabinet is designed to be open without front and rear doors, without side doors to ensure that all installed equipment is optimally dissipated.

• Compact design, light weight ensures easy cabinet movement and installation.

• Multi-component modular-grid structure, making the cabinet structure sturdy yet easy to customize, disassemble and move.

• The device mounting frame is designed with multi-sided folding to increase load capacity. Each U (unit) is stamped with an edge and clearly printed with an index.

• Both sides of the cabinet can be equipped with a vertical cable management system to help organize and manage high-density cables efficiently and aesthetically.

• The roof and bottom of the cabinet are designed to be completely open to ensure high-density cable access.

• The wheels are designed to be low, with a wide surface, which makes it smooth and high-load-bearing. Built-in screw stand is used to fix and calibrate the cabinet.

• All cabinets are grounded to ensure safety for users.

VRO42G200

Specifications

DIMENSION

 Height: 20U to 42U.
 Width: 530 (mm).
 Depth: 700 (mm).

PAINT COLOR

 Default color: White gray (RAL 7035).
 Other optional colors: Black (RAL 9005).

MATERIAL

SPCC cold rolled steel plate:
 Cabinet frame: 2.0 mm.
 Equipment hanging bar: 2.0 mm.

UNIT DIMENSIONS (U) ACCORDING TO EIA-310-E

 Height 1U: 44.45 mm (1.75″).
 Width: 482.6 mm (19″).

LOAD CAPACITY

 On wheels: 500 kg.
 On the stand: 1,000 kg.

STANDARD

 EIA-310-E (ECIA-310-E), Type A.
 DIN 41494.
 BS5954 Part 2.
 IEC 60297-1, IEC 60297-2.

Ordering Information

Item Code Describe U-Number Height Width Depth
20U
VRO20G200 2 Posts Open Rack 20U, Light Grey 20U 1016 mm 600 mm 700 Mm
27U
VRO27G200 2 Posts Open Rack 27U, Light Grey 27U 1327 mm 600 mm 700 Mm
36U
VRO36G200 2 Posts Open Rack 36U, Light Grey 36U 1728 mm 600 mm 700 Mm
42U
VRO42G200 2 Posts Open Rack 42U, Light Grey 42U 1995 mm 600 mm 700 Mm

Additional information

Server Cabinet

2 Post
