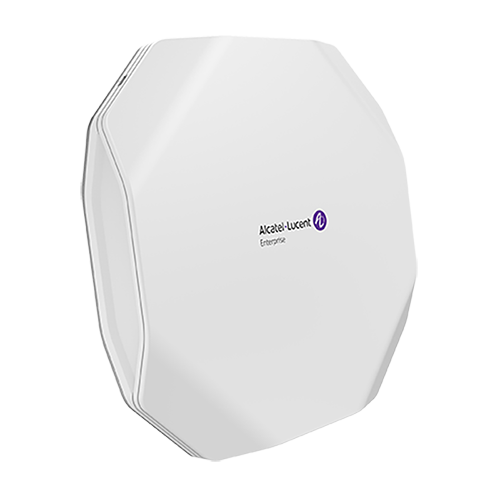

OmniAccess Stellar AP1431

OAW-AP1431-RW – Alcatel-Lucent AP1431 Indoor Wi-Fi 6E Access Point :

  • Tri radio 2.4+5+6GHz 2×2 Wi-Fi 6E
  • 2 x 2.5GE (PoE) 802.3bt
  • Integrated omniantenna
  • BLE/Zigbee radio

Description

Wi-Fi 6E Alcatel-Lucent OmniAccess Stellar AP1431 Indoor Access Point (OAW-AP1431-RW)

Model AP1431 (OAW-AP1431-RW)
Radio Specification • AP type: Indoor Wi-Fi 6E (802.11ax)
• Tri Radio, 6 GHz High 2×2:2, 5 GHz 2×2:2 and 2.4 GHz 2×2:2
• 6 GHz: 2×2:2 up to 2.4Gbps wireless data rate to individual 2SS HE160 802.11ax client devices.
• 5 GHz: 2×2:2 up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices.
• 2.4 GHz: 2×2:2 up to 574Mbps wireless data rate to individual 2SS HE40 802.11ax client devices.
Interfaces • 2 x multi-Gigabit 2.5/1 GE autosensing (RJ-45) ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt compliant
• 1 x USB 3.0 Type A (5V, 1A)
• Console
• Reset button: Factory reset
Visual Indicators (Tri-colour LED) For system and radio status
• Red flashing: System abnormal, link down
• Red light: System startup
• Red and blue rotate flashing: System running, OS upgrading
• Blue light: System running, dual bands working
• Green flashing: System running, no SSID created
• Green light: System running, single band working
• Red, blue and green rotate flashing
• System running, use for location of an AP
Security • Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys
• 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE)
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista Portal page authentication
Antenna • Integrated omni-directional antennas with maximum antenna gain of 4.1dBi in 2.4 GHz, 4.5dBi in 5 GHz and 4.7dBi in 6 GHz
Power • Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source: 48 V DC nominal, +/- 5%
• Power over Ethernet (PoE): IEEE 802.3bt compliant source
• Maximum (worst case) power consumption:
– 34W (singe input IEEE 802.3bt or dual input IEEE 802.3at POE); Unrestricted functionality
– 25W (single input IEEE 802.3at POE); The USB port is disabled
Mounting • Ceiling/wall mounting (Mount kit needs to be ordered separately)
Environmental • Operating Temperature: 0°C to 45°C
• Humidity: 5% to 95% non-condensing
• Storage and transportation: Temperature: -40°C to +70°C
Dimensions/Weight • Single AP excluding packing box and accessories:
– 210mm (W) x 210mm (D) x 40mm (H)
– 1020g
• Single AP including packing box and accessories:
– 238mm (W) x 237mm (D) x 69mm (H)
– 1270g
Reliability • MTBF: TBA at +25ºC operating temperature
Capacity • Up to 16 SSID/Radio (limited to 4 for 6GHz radio). Support for up to 512 associated client devices per radio
Software feature • Up to 4K APs when managed by OV2500. No limit on number of AP groups
• Up to 255 APs per web managed (HTTP/ HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal (Internal/External)
• Guest self-registration optional SMS notification) with OmniVista 2500
• Internal user database
• RADIUS client
• Guest social-login with OmniVista 2500
• RADIUS proxy authentication with OmniVista 2500
• LDAP/AD proxy authentication with OmniVista 2500
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behaviour tracking
• White/Block list
• Zero-touch provisioning (ZTP)
• NTP Client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SSHv2
• SNMPv2, SNMPv3
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
• Stanley Healthcare/Aeroscout RTLS support



Additional information

Wifi6

OAW-AP1431-RW
