Description
Details that matter
- PoE/PoE+ options: 740 W
- Optional: 8x 2.5 GbE mGig ports and 4x 10G SFP+ uplinks
- Configure thousands of ports from a single dashboard
- Layer 2, 802.1X authentication
- MS130 mGig (-X) models are hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license
Maximize your bandwidth

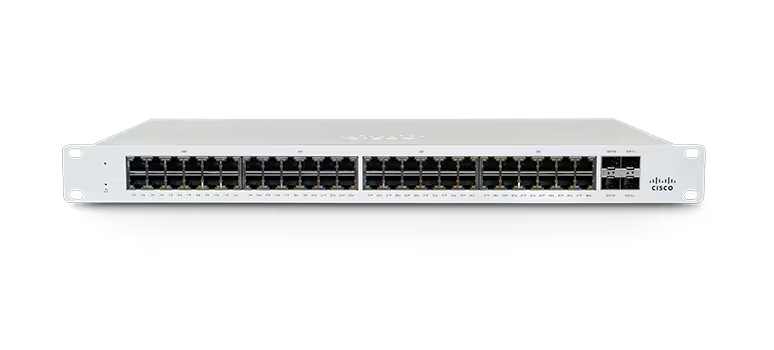

- MS130-48/48P: 48x 1 GbE and 4 1G SFP
- MS130-48X: 40x 1 GbE and 8x 2.5 GbE with 4x 10G SFP+
Cloud-managed
- Zero-touch provisioning
- Network-wide visibility and control
- Seamless firmware updates
- Remote troubleshooting tools
Power/PoE
- MS130-48P includes 740 W PoE+
- MS130-48X includes 740 W PoE+
Enterprise hardware and support
- 1U rack-mountable with integrated ears on the front panel
- Low-noise, fanless options
- Voice and video QoS
- Non-blocking switch fabric
Switching capabilities
- Layer 2
- DHCP relay
- DHCP snooping
Accessories
MA-PWR-150WAC-ADP
MA-SFP-10GB-ER
MA-SFP-10GB-LR
MA-SFP-10GB-SR
MA-SFP-1GB-LX10
MA-SFP-1GB-SX
MA-SFP-1GB-TX

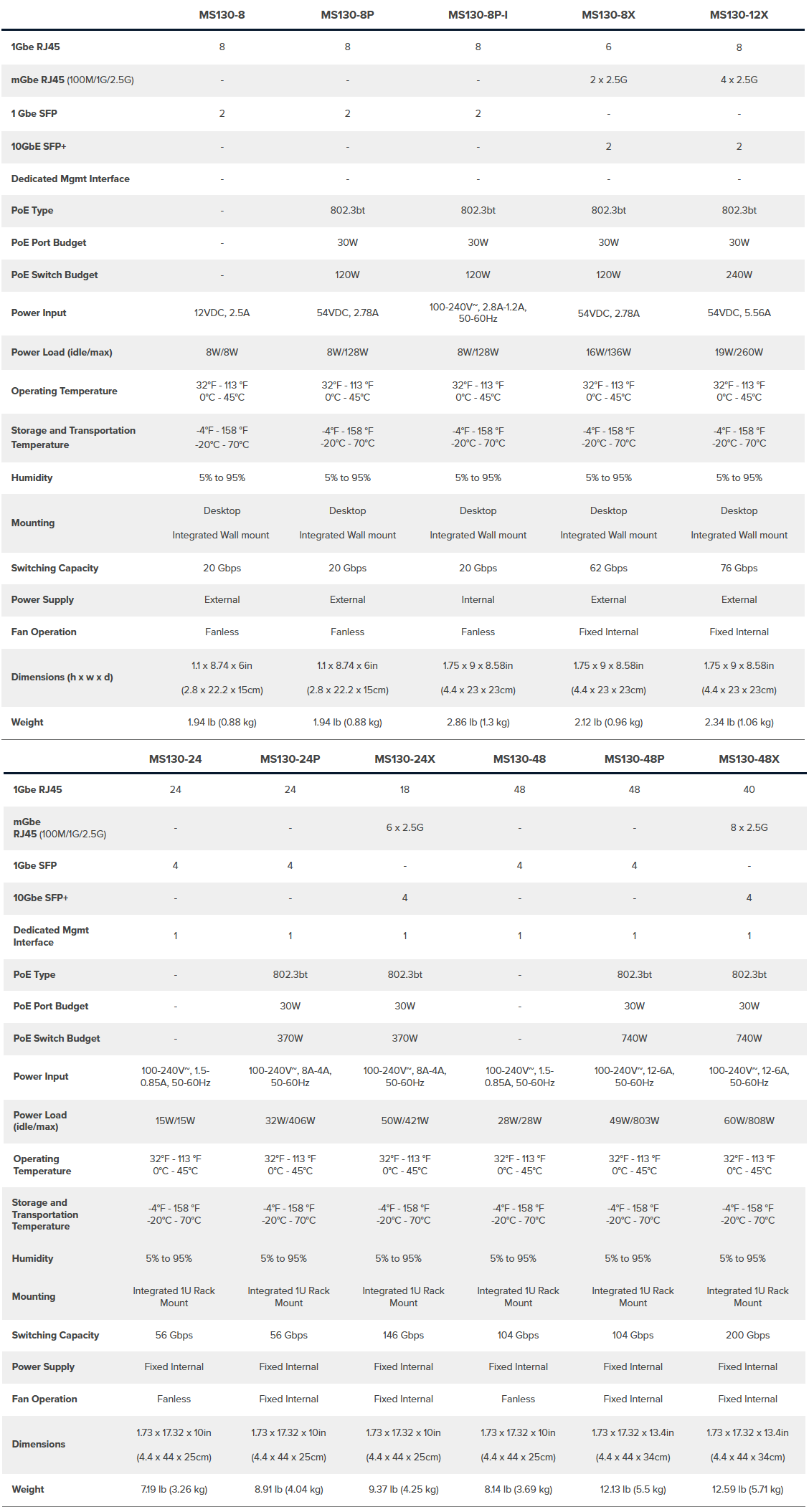

MS130 Models
| MS130-8 | MS130-8P | MS130-8P-I | MS130-8X | MS130-12X | |
| 1Gbe RJ45 | 8 | 8 | 8 | 6 |
8 |
| mGbe RJ45 (100M/1G/2.5G) | – | – | – | 2 x 2.5G | 4 x 2.5G |
| 1 Gbe SFP | 2 | 2 | 2 | – | – |
| 10GbE SFP+ | – | – | – | 2 | 2 |
| Dedicated Mgmt Interface | – | – | – | – | – |
| PoE Type | – | 802.3bt | 802.3bt | 802.3bt | 802.3bt |
| PoE Port Budget | – | 30W | 30W | 30W | 30W |
| PoE Switch Budget | – | 120W | 120W | 120W | 240W |
| Power Input | 12VDC, 2.5A | 54VDC, 2.78A | 54VDC, 3.70A |
54VDC, 2.78A |
54VDC, 5.56A |
| Power Load (idle/max) | 8W/8W | 8W/128W | 8W/128W | 16W/136W | 19W/260W |
| Operating Temperature | 32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
| Storage and Transportation Temperature |
-4°F – 158 °F |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
| Humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
| Mounting |
Desktop Integrated Wall mount |
Desktop Integrated Wall mount |
Desktop Integrated Wall mount |
Desktop Integrated Wall mount |
Desktop Integrated Wall mount |
| Switching Capacity | 20 Gbps | 20 Gbps | 20 Gbps | 62 Gbps | 76 Gbps |
| Power Supply | External | External | Internal | External | External |
| Fan Operation | Fanless | Fanless | Fanless | Fixed Internal | Fixed Internal |
| Dimensions (h x w x d) |
1.1 x 8.74 x 6in (2.8 x 22.2 x 15cm) |
1.1 x 8.74 x 6in (2.8 x 22.2 x 15cm) |
1.75 x 9 x 8.58in (4.4 x 23 x 23cm) |
1.75 x 9 x 8.58in (4.4 x 23 x 23cm) |
1.75 x 9 x 8.58in (4.4 x 23 x 23cm) |
| Weight | 1.94 lb (0.88 kg) | 1.94 lb (0.88 kg) | 2.86 lb (1.3 kg) | 2.12 lb (0.96 kg) | 2.34 lb (1.06 kg) |
| MS130-24 | MS130-24P | MS130-24X | MS130-48 | MS130-48P | MS130-48X | |
| 1Gbe RJ45 | 24 | 24 | 18 | 48 | 48 | 40 |
| mGbe RJ45 (100M/1G/2.5G) | – | – | 6 x 2.5G | – | – | 8 x 2.5G |
| 1Gbe SFP | 4 | 4 | – | 4 | 4 | – |
| 10Gbe SFP+ | – | – | 4 | – | – | 4 |
| Dedicated Mgmt Interface | 1 | 1 | 1 | 1 | 1 | 1 |
| PoE Type | – | 802.3bt | 802.3bt | – | 802.3bt | 802.3bt |
| PoE Port Budget | – | 30W | 30W | – | 30W | 30W |
| PoE Switch Budget | – | 370W | 370W | – | 740W | 740W |
| Power Input | 100-240V~, 1.5-0.85A, 50-60Hz | 100-240V~, 8A-4A, 50-60Hz | 100-240V~, 8A-4A, 50-60Hz | 100-240V~, 1.5-0.85A, 50-60Hz | 100-240V~, 12-6A, 50-60Hz | 100-240V~, 12-6A, 50-60Hz |
| Power Load (idle/max) | 15W/15W | 32W/406W | 50W/421W | 28W/28W | 49W/803W | 60W/808W |
| Operating Temperature | 32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
32°F – 113 °F 0°C – 45°C |
| Storage and Transportation Temperature | -4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
-4°F – 158 °F -20°C – 70°C |
| Humidity | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% | 5% to 95% |
| Mounting | Integrated 1U Rack Mount | Integrated 1U Rack Mount | Integrated 1U Rack Mount | Integrated 1U Rack Mount | Integrated 1U Rack Mount | Integrated 1U Rack Mount |
| Switching Capacity | 56 Gbps | 56 Gbps | 146 Gbps | 104 Gbps | 104 Gbps | 200 Gbps |
| Power Supply | Fixed Internal | Fixed Internal | Fixed Internal | Fixed Internal | Fixed Internal | Fixed Internal |
| Fan Operation | Fanless | Fixed Internal | Fixed Internal | Fanless | Fixed Internal | Fixed Internal |
| Dimensions | 1.73 x 17.32 x 10in
(4.4 x 44 x 25cm) |
1.73 x 17.32 x 10in
(4.4 x 44 x 25cm) |
1.73 x 17.32 x 10in
(4.4 x 44 x 25cm) |
1.73 x 17.32 x 10in
(4.4 x 44 x 25cm) |
1.73 x 17.32 x 13.4in
(4.4 x 44 x 34cm) |
1.73 x 17.32 x 13.4in
(4.4 x 44 x 34cm) |
| Weight | 7.19 lb (3.26 kg) | 8.91 lb (4.04 kg) | 9.37 lb (4.25 kg) | 8.14 lb (3.69 kg) | 12.13 lb (5.5 kg) | 12.59 lb (5.71 kg) |
