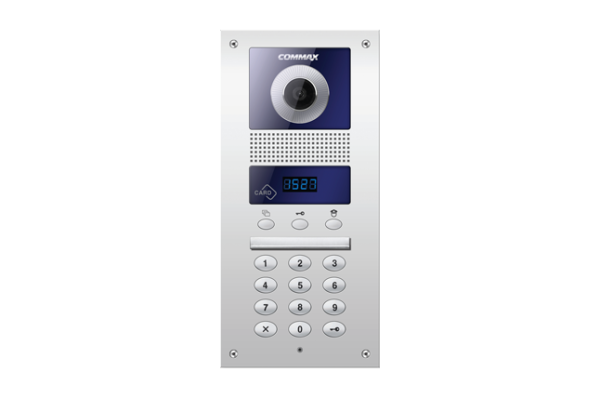

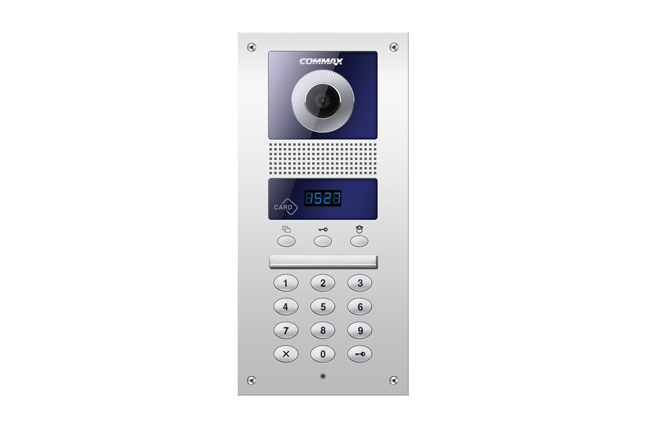

Lobby Phone | ENTRANCE STATION DRC-GUC RF1
DRC-GUC/RF1 ENABLES AN OPTIMUM SECURITY AND ACCESS CONTROL MANAGEMENT SYSTEM VIA ITS SIMPLICITY IN INSTALLATION AND EXPANDABILITY
Description
Function
- Paging and calling a household unit or a security guard station
- OLED
- Various verification methods(password and RFID card)
Specification
- Power source
- DC 12V, 1A
- Mount type
- Flush-mounted type
- Operating temp.
- -20℃~40℃
- Wiring
- UTP(Cat. 5e)
- Distance
- Max. 300m(VD-103(N))
- RFID card
- 13.56MHz(Optional)
- Image sensor
- Color C-MOS 1/4inch
- Angle of view
- Horizontal: 68°, Vertical: 55°
- Min. Illumination
- 0.1 Lux(Up to 300mm from camera to an object)
- Lighting
- Color: white LED x 2
- Dimension(mm)
- 130(W)×315(H)×10(38)(D)

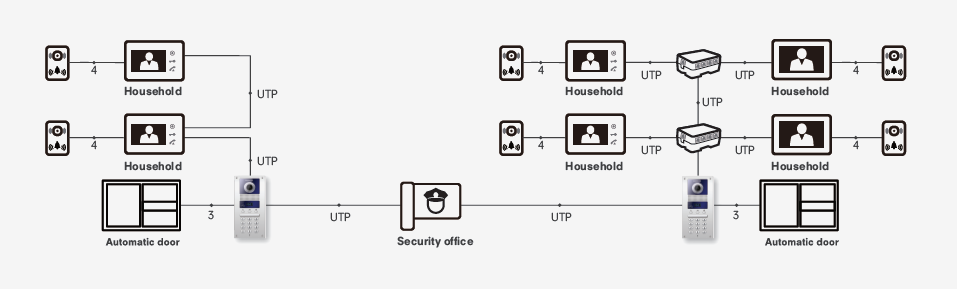

Wiring Diagram
