IXG-MK

Components
IP Video Guard Station

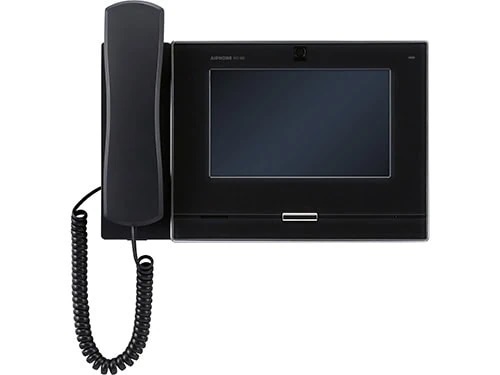

The IXG-MK is an IP video guard station with a 7″ LCD touchscreen for the IX | IXG Series system. This station can answer calls from an entrance station, tenant station, or individual door stations, and make building-wide announcements. This station is SIP and ONVIF Profile S compliant and is compatible with all IX | IXG series devices.

Categories: ,

Description

 Features

Concierge Screening

Entry Security

Network Based
  • SIP Compliant
  • ONVIF® Profile S Compliant
  • 7″ TFT LCD touchscreen
  • Camera with privacy shutter
  • Handset, Hands-free or push-to-talk communication
  • Capture and store the audio/video of active conversations on a microSD™ card (not provided by Aiphone)
  • Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
  • 2 contact outputs
  • 4 trigger inputs
  • 8Ω 0.5 watt speaker output
  • 600Ω audio input
  • UL certified

 Specs

Power Source

PoE (IEEE 802.3af class 0)

Power Draw

4.32 Watts

Screen

800×400 7″ LCD TFT Touchscreen

Camera

⅓” CMOS 720p

Communication

Full-duplex w/ Handset or Hands Free

Audio Codec

G.711(µ-law, A-law)

Video Codec

H.264/AVC, Motion JPEG

Port Security

IEEE 802.1X

Operating Temp

32° ~ 104°F (0° ~ 40°C)

Dimensions

8-1⁄16″ H x 11″ W x 2-3⁄16″ D

Mounting

Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.
