GUARD STATION CIOT-G700M CIOT-G701M

Description

Function

• 7inch(17.8cm) Touch LED Display
• GUI Touch screen
• SIP-based VoIP system
• Emergency check and release
• CCTV monitoring in the public areas
• House call and talk
• Visitor monitoring and calling at the public entrance
• Intercommunicate between guard stations
• Saving visitors image & movie clip(Main entrance)
• Check security office visitors on the monitor(CIOT-G701M)
  [Door camera must be connected to CIOT-G701M]

Specification

Power Supply

DC 14V, 2.1A

Display

7 inch Touch LED Display

Mount Type

Desktop / Wall-mounted type

Operation Temp.

-10℃ ~ 40℃

Wiring

UTP(CAT.5e)

Distance

100m (Ø 0.65)

Dimension(mm)

252(W)×247(H)×33(D)

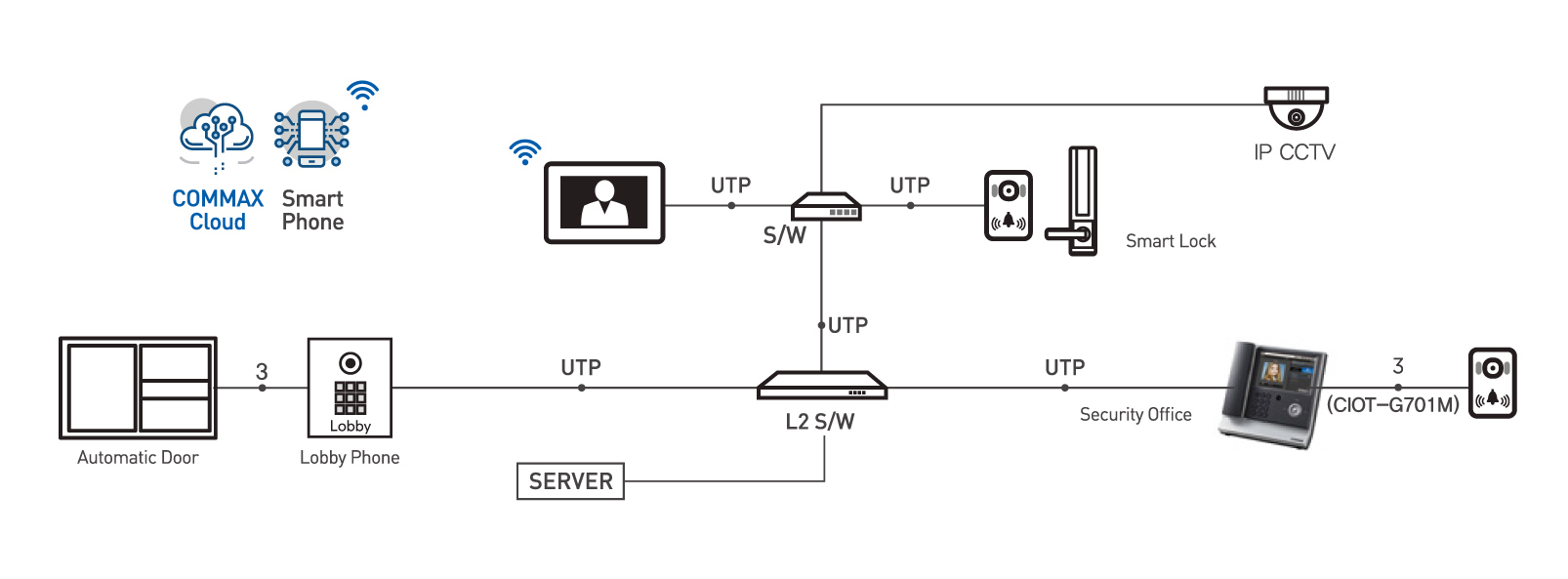

Wiring Diagram
