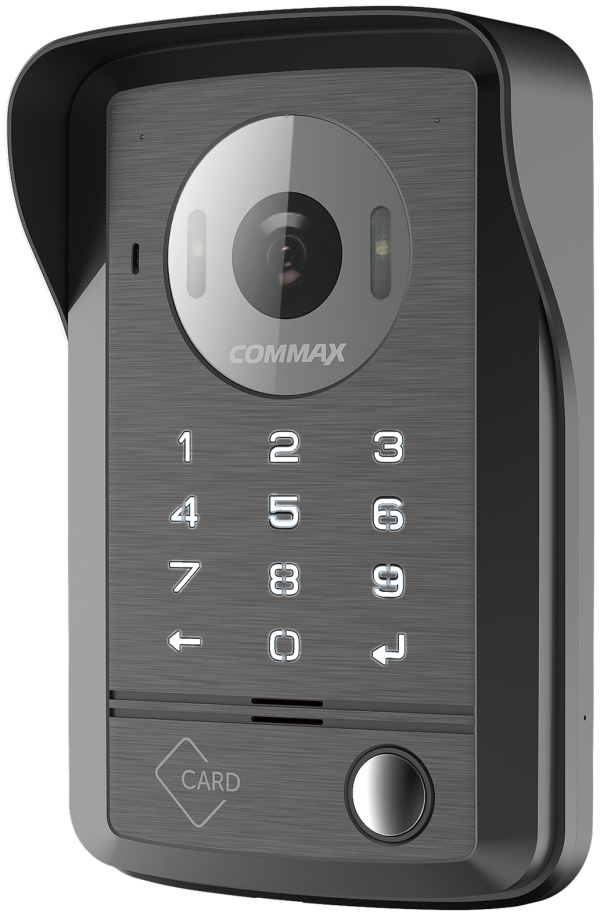

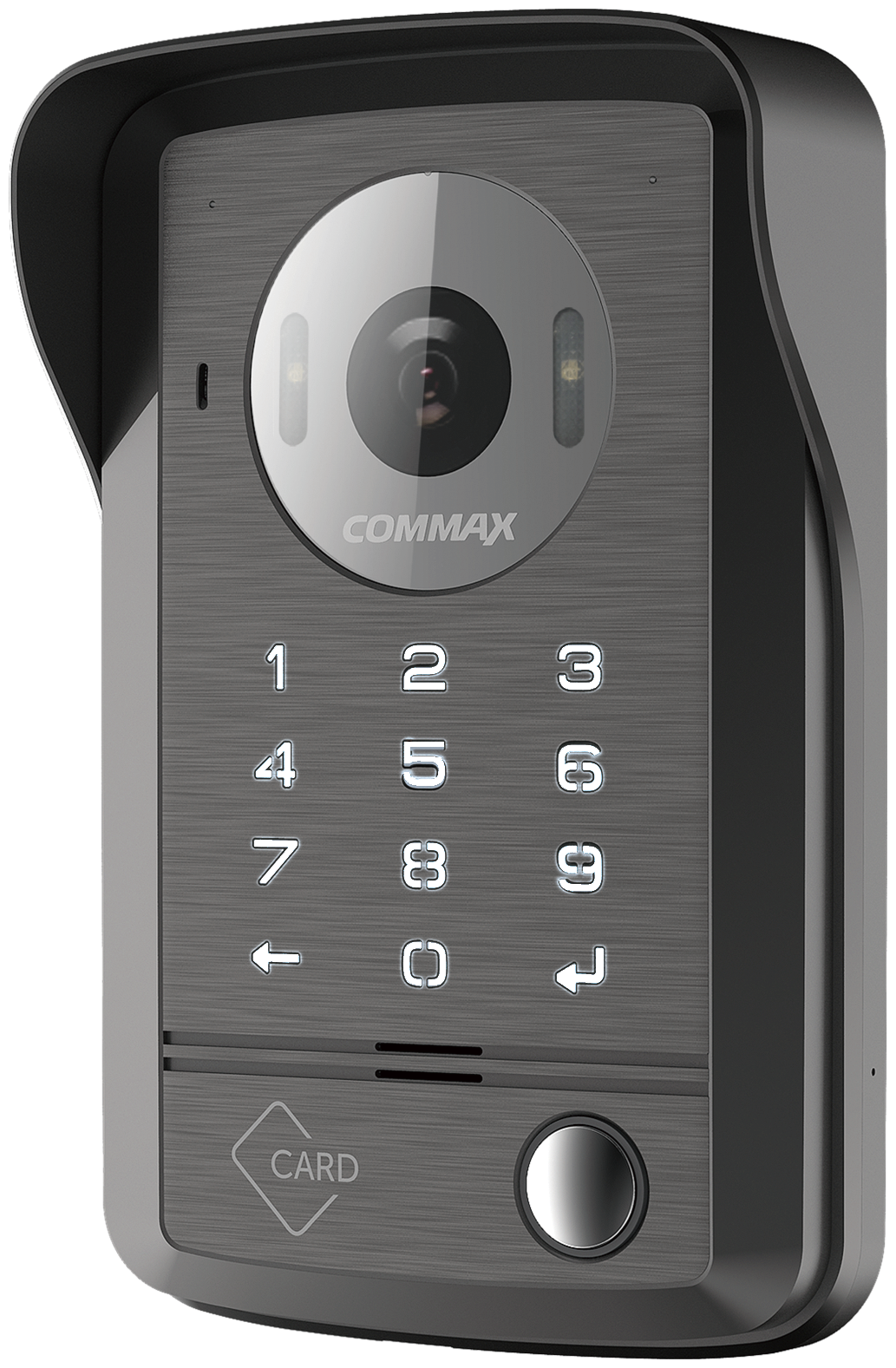

DOORLOCK CAMERA DRC-41DKH

Description

Function

• AHD 1M pixel(DRC-41DKH), AHD 0.52M pixel(DRC-41DK)
• 2 Door open camera
• 3 way access (PW, RF Card, Videophone)
• Enter the password using 10 key
• Illuminance sensor
• Outdoor model
• Housecall and talk
• Motion detection (PIR)
• Built-in type
• White LED

Specification

Power source

12VD/1A(Adaptor)

Operation Temp.

-10℃~50℃

Wiring

4 wires to a monitor
2 wires to DOOR 1
3 wires to DOOR 2(non-polarity)

Minimum Illumination

0.1Lux (up to 300mm)

Lighting

Built-in white LED (3 pie) 2 EA

Imaging angle

110°diagonal

Camera viewing angle

Hotiz. 75° Vert.55°

Distance

28m(Ø0.5 UTP)

Dimension(mm)

127(W)×193(H)×63(D)
